Views: 1 Author: Site Editor Publish Time: 2025-07-23 Origin: Site

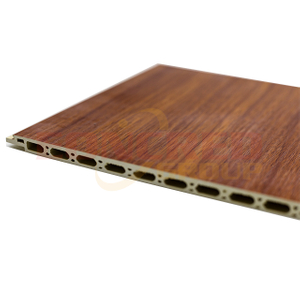

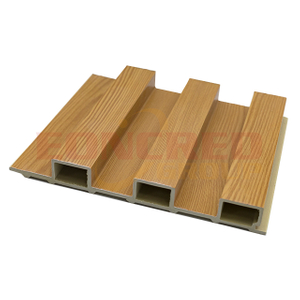

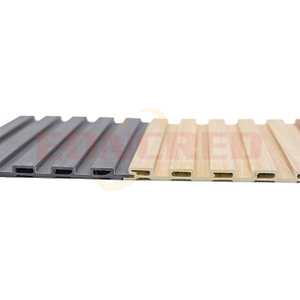

WPC (Wood-Plastic Composite) wall panels merge recycled wood fibers and thermoplastics into a high-performance cladding material. Combining the warmth of wood with plastic’s durability, they offer a low-maintenance, eco-friendly alternative to traditional wood, PVC, or aluminum panels.
Raw Materials:
50–70% recycled wood flour (sawdust, rice husks).
30–50% recycled plastics (HDPE/PP from bottles, bags).
Additives: UV stabilizers, colorants, bonding agents.
Production Process:
Mixing: Raw materials blended into homogeneous granules.
Extrusion: Heated and molded into interlocking panels.
Texturing: Embossed wood grain or smooth finishes added.
Quality Control: Tested for density (1.2–1.4 g/cm³), moisture resistance, and load capacity.
| Feature | Benefit | Data/Comparison |
|---|---|---|
| Water & Rot Proof | Zero water absorption; ideal for humid climates. | Swelling rate: <0.1% (vs. wood’s 10–15%). |
| Low Maintenance | No painting/sealing; clean with water. | Saves 70% maintenance cost vs. wood. |
| Eco-Friendly | Uses waste materials; recyclable at end-of-life. | Reduces CO₂ by 3.2 tons per 100m² vs. PVC. |
| Fire & UV Resistant | Self-extinguishing (Class B fire rating); no fading. | QUV accelerated aging: 5,000+ hours. |
| Easy Installation | Lightweight; click-lock systems cut labor time. | Installs 3x faster than ceramic tiles. |
Residential:
Exterior cladding (siding, fences), balcony panels, bathroom walls.
Case Study: Miami beach houses – withstands salt spray, hurricanes.
Commercial:
Hotel lobbies, restaurant feature walls, retail displays.
Case Study: Dubai mall – 12,000m² WPC panels, 30% faster install.
Industrial:
Factory partitions, warehouse insulation.
Circular Economy:
1 ton WPC = 700kg diverted plastic waste + 300kg wood waste.
Certifications:
LEED/BREEAM points, FSC Recycled label, GreenGuard Gold (VOC-free).
Carbon Impact:
Production emits 40% less CO₂ than PVC panels.
Growth Drivers:
Global market to hit $8.4B by 2028 (CAGR 9.1%), fueled by green building codes.
Demand surge in Asia-Pacific (China, India) and North America.
Tech Innovations:
Integrated Insulation: WPC panels with EPS foam cores (R-value: 3.5).
Smart Surfaces: Embedding solar cells or LED lighting.
Self-Healing Coatings: Microcapsules repair minor scratches.
Substrate Prep: Ensure flat, dry surfaces; use vapor barriers in humid zones.
Fixing System:
Hidden clips for seamless looks.
Stainless steel screws for coastal areas.
Expansion Gaps: Leave 5–8mm gaps (per 3m length) for thermal movement.
