Views: 0 Author: Site Editor Publish Time: 2026-08-07 Origin: Site
If you're sourcing hardware for kitchen cabinets, wardrobes, or furniture doors, the 62g hydraulic hinge has become one of the most requested items among importers looking for a reliable, low-noise, soft-close solution at factory-direct pricing. In this guide, we break down what this hinge is, its specifications, applications, and why it's worth adding to your next hardware order.

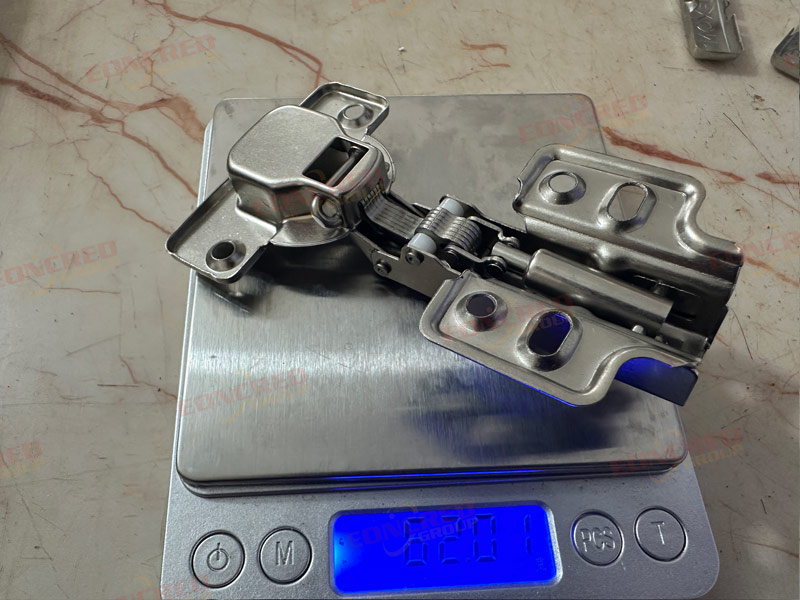

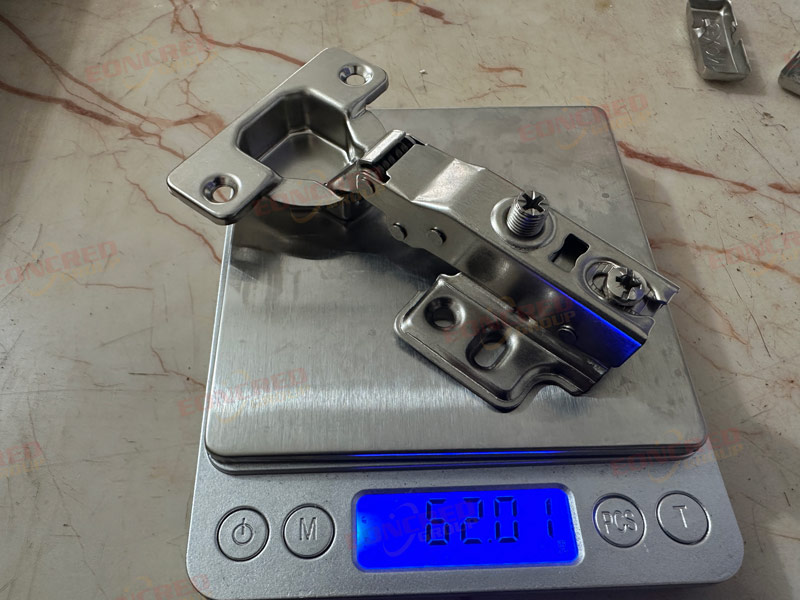

A 62g hydraulic hinge is a concealed cabinet hinge with a hydraulic (oil-damped) soft-close mechanism, weighing approximately 62 grams per unit. The "62g" figure refers to the net weight of a single hinge — a spec buyers commonly reference when comparing hinge durability and material density across suppliers, since heavier hinges generally use thicker steel or zinc alloy bodies and hold up better under repeated daily use.
Unlike standard spring hinges that snap shut, a hydraulic hinge uses an internal damper that engages in the final 15–20 degrees of closing, letting the door settle shut silently instead of slamming. This is now considered a baseline expectation for mid-to-high-end kitchen and wardrobe cabinetry across North America, Europe, the Middle East, and Southeast Asia.
Spec | Detail |
|---|---|
Net weight | 62g per piece |
Cup diameter | 35mm (standard) |
Material | Zinc alloy body / cold-rolled steel arm |
Closing mechanism | Hydraulic soft-close (damped) |
Opening angle | 95°–110° (adjustable) |
Door thickness range | 16–22mm |
Mounting type | Concealed / clip-on |
Surface finish | Nickel-plated, powder-coated options available |
Compatible with | Full overlay, half overlay, inset cabinet doors |
The 62g hydraulic hinge is a fit for any project using melamine MDF board or particle board cabinet carcasses, which is why it's frequently ordered alongside board materials rather than as a standalone item. Typical applications include:
Kitchen cabinet doors
Wardrobe and closet doors
Bathroom vanity cabinets
Office and commercial furniture doors
Display cabinets and retail fixtures
Importers sourcing hydraulic hinges directly from a hydraulic hinge factory in China typically see two advantages over buying through distributors:
Lower per-unit cost at volume — factory-direct wholesale pricing removes the distributor markup, which matters most on high-volume cabinet projects where hinge count can run into the thousands of units.
Consistent QC across large orders — sourcing from a single production line reduces the finish and tolerance variation that can appear when hinges are bought in smaller batches from multiple resellers.
If you're already importing WPC wall panels, SPC/LVP flooring, or melamine MDF board, adding hydraulic hinges to the same container can also reduce shipping cost per unit and consolidate your supplier relationships.
Mark and drill the 35mm cup hole on the door panel at the correct offset from the edge.
Insert the hinge cup and secure with the included screws.
Attach the mounting plate to the cabinet frame.
Clip the hinge arm onto the mounting plate until it clicks into place.
Adjust the depth, height, and side screws to align the door.
Test the soft-close action through a full open-close cycle before final tightening.
What does the "62g" in a hydraulic hinge spec mean? It refers to the net weight of a single hinge unit, used as a quick reference point for comparing material thickness and build quality between suppliers.
Is a 62g hydraulic hinge strong enough for kitchen cabinet doors? Yes. At this weight and with a zinc alloy body, it's rated for standard kitchen cabinet door sizes and daily-use cycles, and is one of the more common specs requested for mid-weight cabinet doors.
Can this hinge be used with melamine MDF or particle board cabinets? Yes, this hinge type is designed for standard 16–22mm panel thickness, which covers most melamine MDF and particle board cabinet doors.
What's the difference between a hydraulic hinge and a spring hinge? A spring hinge closes the door quickly without damping, while a hydraulic hinge uses an internal oil damper to slow the final stage of closing, preventing slamming and noise.
Do you offer wholesale pricing for bulk hydraulic hinge orders? Yes, factory-direct wholesale pricing is available and typically scales down per unit as order volume increases — contact us for a quote based on your project size.
